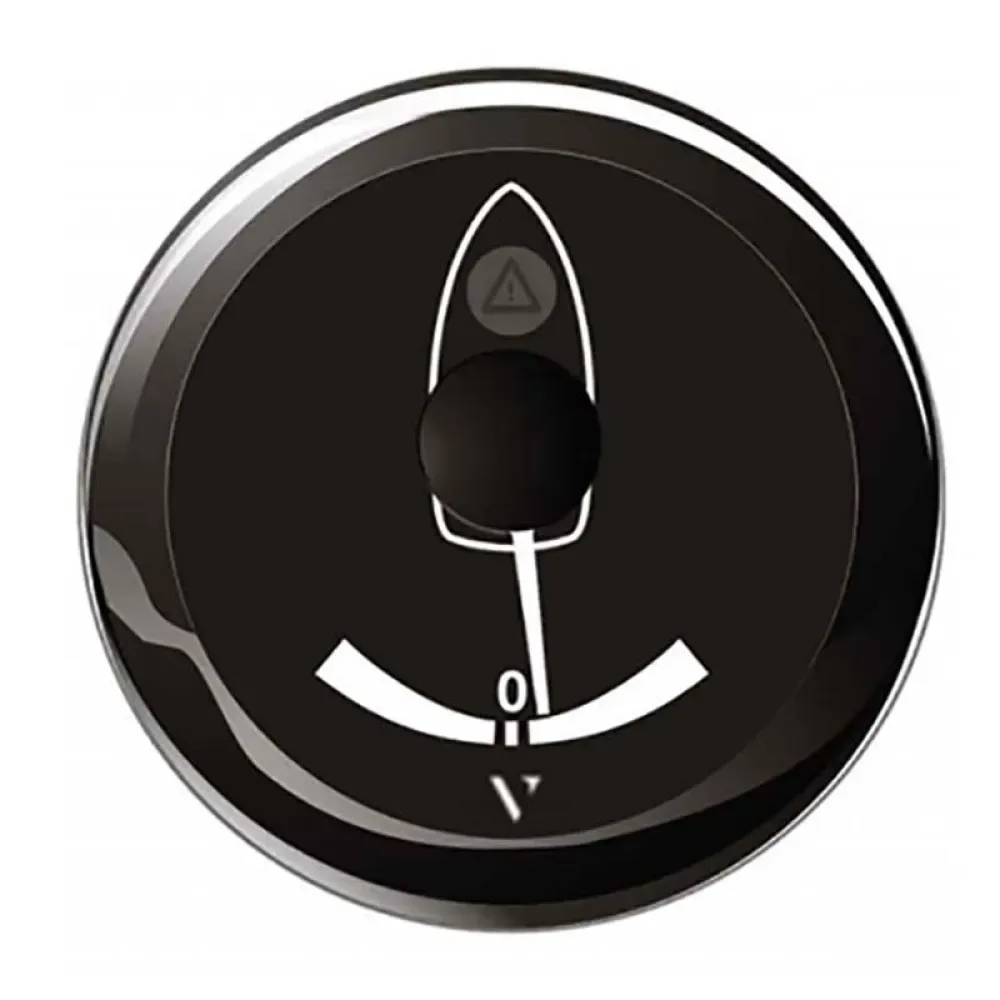

Buy Now Ohm 40° Angled Rudder Instrument Black 52 mm unisex

Veratron ViewLine.- 52mm Rudder Angle Indicator.- 12-24V DLRB.Specifications:- Panel hole diameter:52 mm.- 2 1/16´´.- Range:-40° to +40° Rudder angle.- Lens:Dual.- Anti-Fog.- Weight:0.45kg.- Installation (Hole) diameter and Outside diameter:52 mm.- 2 1/16 Inch and 59 mm.- 2 1/3 Inch.- Installation depth:50 mm.- Locking height with SAnti-fog nut:0.5 mm.- 20 mm.- Locking height with bracket:2 mm.- 15 mm (Optional) Functionality:- Rudder angle range:-40° to +40°.- Sensor signal input rudder gauge:Veratron 440-102-001-001D Rudder angle sender 3-180 Ohm.- Accuracy:< 4 % van de of full scale reading schaal.- Connection:Hirschmann 8 & 14 pins MQS connector Power supply:- Operating voltage:8 to 32 V DC.- Current consumption:< 140 mA including warning LED.- Reverse polarity protection:Yes.- 5 Minutes.- Short circuit protection:Yes.- 1 Minute Dial & Pointer:- Deflection angle:80°.- Dial Illumination:Amber LED backlight 605nm.- Pointer:White LED backlight.- Warning LED:Red (632nm).- Programming:Veratron USB software kit Design:- Model:Veratron ViewLine Marine.- Lens:Dual.- Anti-glare.- Anti-Fog.- Standard bezel:Round black (Interchangeable) Protection and standards:- Front protection class:IP67 (IEC 60529).- Rear protection class:IP52.- Relative humidity:Maximum 95%.- Operating temperature:-30°C to +80°C (Plastic bezel).- CE standard:Yes.- DNV GL.Certification:Yes.- Mechanical shock continuous:25G.- 6ms.- 1Hz.- Mechanical single shock 100G.- 11ms.- Free fall test:1 Meter.- 3x.- Housing flame retarding:UL94-VD.
