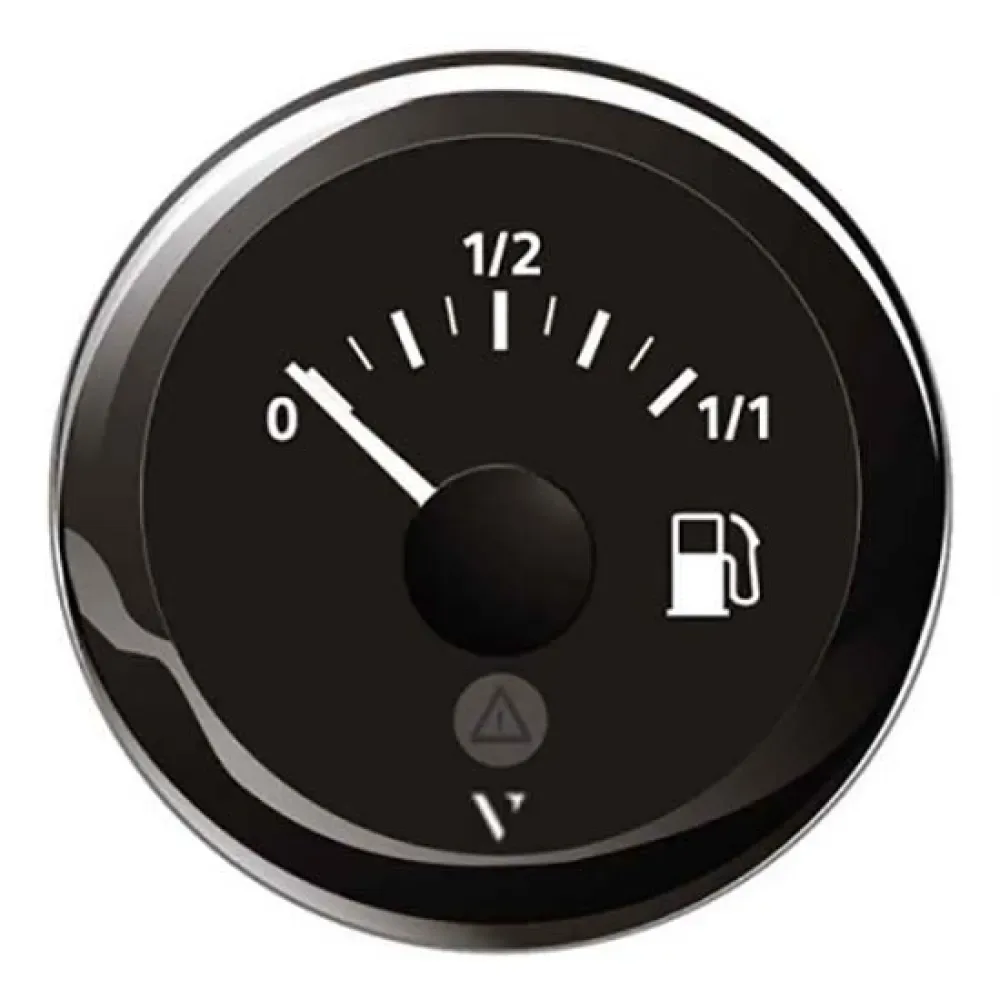

Buy Now Ohm Fuel Level Instrument Black 52 mm unisex

Veratron ViewLine Fresh Water Level 3-180 Ohm 52mm.Specifications:- Lens:Dual.- Anti-Fog.- Retail package 1 Fuel level gauge.- Weight:0.45kg.- Installation (Hole) diameter and Outside diameter:52 mm.- 2 1/16 Inch and 59 mm.- 2 1/3 Inch.- Installation depth:50 mm.- Locking height with SAnti-fog nut:0.5 mm.- 20 mm.- Locking height with bracket:2 mm.- 15 mm (Optional) Functionality:- Fuel level measurement range:0.- 1/2.- 1/1.- Resistance empty:3 Ohm.- Resistance full:180 Ohm.- Sensor signal input fuel level gauge:Veratron Lever arm sender 3.- 180 Ohm EU.- Accuracy:< 3.6 angular degrees.- Connection:Hirschmann 8 pins MQS connector Power supply:- Operating voltage:8.- 32 V DC.- Current consumption:< 140 mA including warning LED.- Reverse polarity protection:Yes.- 5 Minutes.- Short circuit protection:Yes.- 1 Minute.- Dial & Pointer:- Deflection angle:90°.- Dial Illumination:Amber LED backlight 605nm.- Pointer:White LED backlight.- Warning LED:Red (632nm).- Programming:Veratron USB software kit Design:- Model:Veratron ViewLine Marine.- Lens:Dual.- Anti-glare.- Anti-Fog.- Standard bezel:Round black (Interchangeable) Protection and standards:- Front protection class:IP67 (IEC 60529).- Rear protection class:IP52.- Relative humidity:Maximum 95%.- Operating temperature:- 30°C to +80°C (Plastic bezel).- CE standard:Yes.- DNV GL Certification:Yes.- Mechanical shock continuous:25G.- 6ms.- 1Hz.- Mechanical single shock:100G.- 11ms.- Free fall test:1 Meter.- 3x.- Housing flame retarding:UL94-VD.
