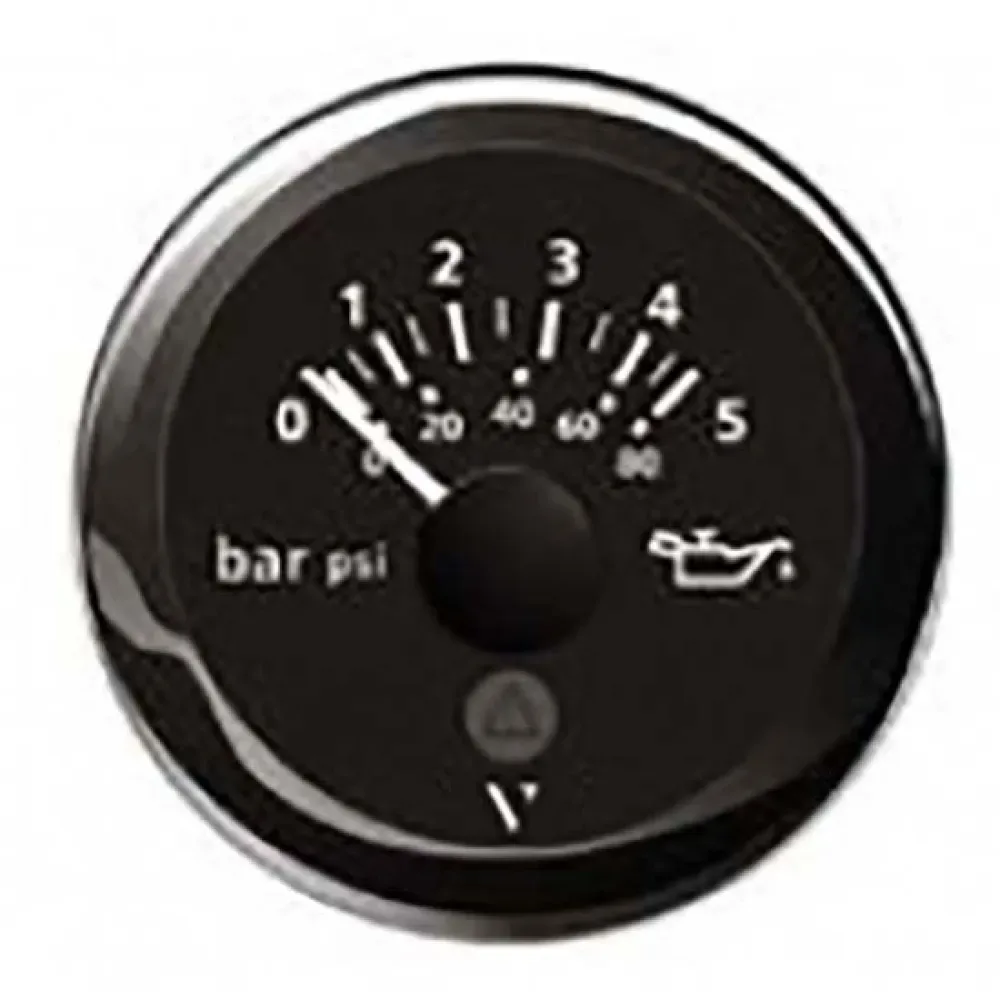

Buy Now Ohm Manometer 0-5bar Black 52 mm unisex

0-5Bar 10-184 Ohm Manometer.Specifications:- Panel hole diameter:52 mm.- 2 1/16´´.- Range:0 to 5 Bar.- Lens:Dual.- Anti-Fog.- Retail package 1 Pressure gauge.- Weight:0.45kg.- Installation (Hole) diameter and Outside diameter:52 mm.- 2 1/16 Inch and 59 mm.- 2 1/3 Inch.- Installation depth:50 mm.- Locking height with SAnti-fog nut:0.5 mm.- 20 mm.- Locking height with bracket:2 mm.- 15 mm (Optional) Functionality:- Engine oil pressure upper scale range:0 to 5 Bar.- Engine oil pressure under scale range:0 to 80 PSI.- Sensor signal input engine oil pressure:Veratron Pressure sender 10 to 184 Ohm.- Accuracy:< 3.6 angular degrees.- Connection:Hirschmann 8 pins MQS connector Power supply:- Operating voltage:8 to 32 Volt DC.- Current consumption:< 140 mA including warning LED.- Reverse polarity protection:Yes.- 5 Minutes.- Short circuit protection:Yes.- 1 Minute Dial & Pointer:- Deflection angle:90°.- Dial Illumination:Amber LED backlight 605nm.- Pointer:White LED backlight.- Warning LED:Red (632nm).- Programming:Veratron USB software kit Design:- Model:Veratron ViewLine Marine.- Lens:Dual.- Anti-glare.- Anti-Fog.- Standard bezel:Round black (Interchangeable) Protection and standards:- Front protection class:IP67 (IEC 60529).- Rear protection class:IP52.- Relative humidity:Maximum 95%.- Operating temperature:- 30°C to +80°C (Plastic bezel).- CE standard:Yes.- DNV GL Certification:Yes.- Mechanical shock continuous:25G.- 6ms.- 1Hz.- Mechanical single shock 100G.- 11ms.- Free fall test:1 Meter.- 3x.- Housing flame retarding:UL94-VD.
