Buy Now Block Classt Ip Fuse 225-400A unisex

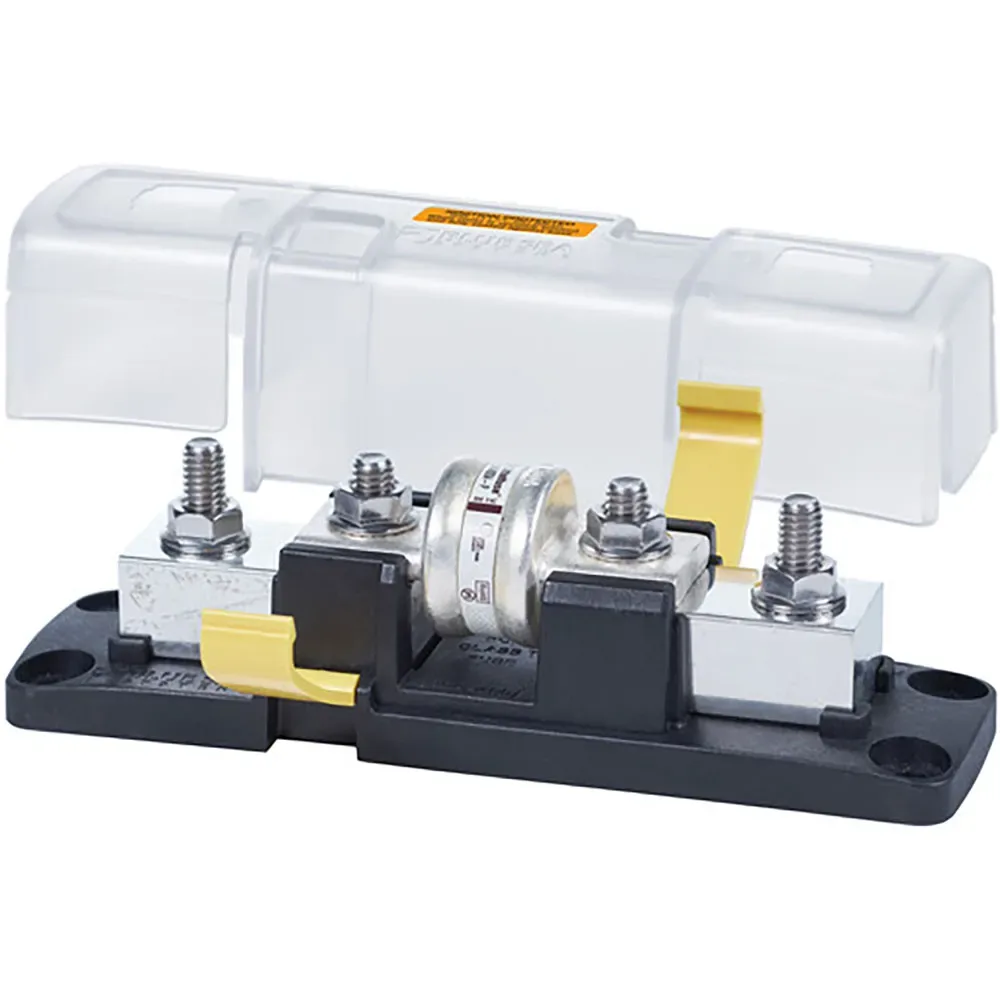

Specifications:- Four Stud Design Provides Ample Access Around Connecting Stud To Install Large Cable Lugs Without Obstruction From The Fuse- Insulating Cover Satisfies Abyc/Uscg Insulation Requirements- Cover Breakouts Allow Wire Access In Any Direction- Stud Design Ensures Secure Fuse Mounting Even With High Heat- Stainless Steel Studs Provide Resistance To Corrosion And High Torque- One-Piece Stainless Flange Nuts Ensure Safe And Secure Connections- Ul 94-V0 Base Resists High Heat- Ignition Protected- Cable Size: Up To 4/0 Awg- Ignition Protected Devices, Which Operate In A Potentially Explosive Environment, Must Be Ignition Protected. This Would Include Engine Rooms With Gasoline Engines. There Is A Very Specific Set Of Tests Which A Device Must Pass To Claim Ignition Protection. They Include Operating Safely In An Explosive Mixture Of Propane And Air.: Yes- Maximum Amperage Maximum Amperage Ratings Are Dependent On Use Of Appropriately Sized Fuses And Wire For A Given Application.: 320a Best Practice: Limit The Amount Of Current In The Circuit To 80% Of The Fuse Rating.- 300a If Inside Engine Space And Continuous Best Practice: Limit The Amount Of Current In The Circuit To 80% Of The Fuse Rating.- Maximum Voltage: 160v Dc- Fuse Mounting Blocks: Tin-Plated Copper- Mounting Fastner Size: 1/4´´ Or M6 Hardware- Terminal Stud Size: 5/16´´-18 (M8)- Weight: 1.10lb (0.5 Kg)
